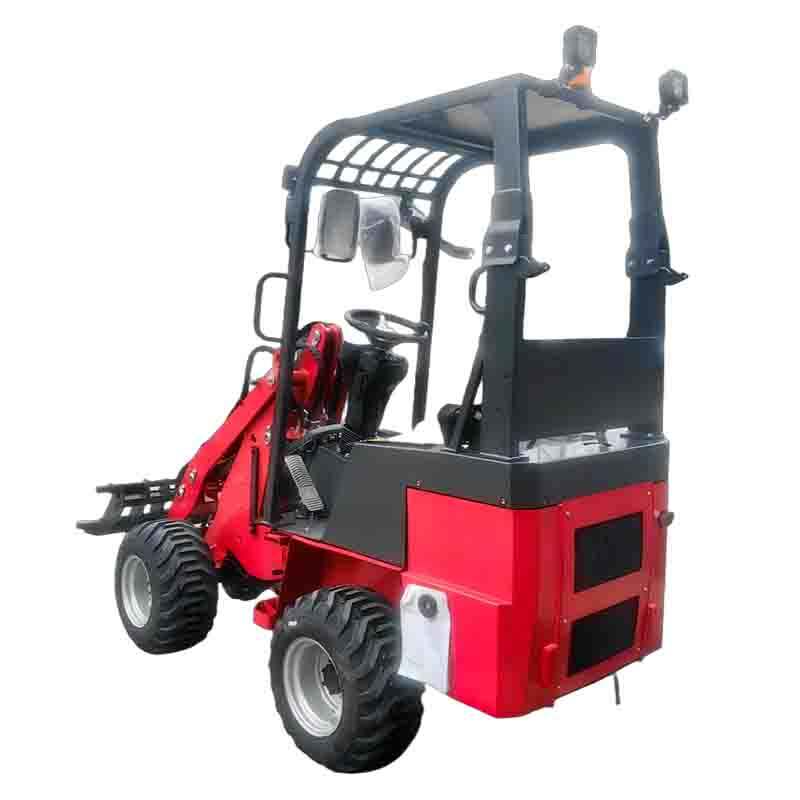

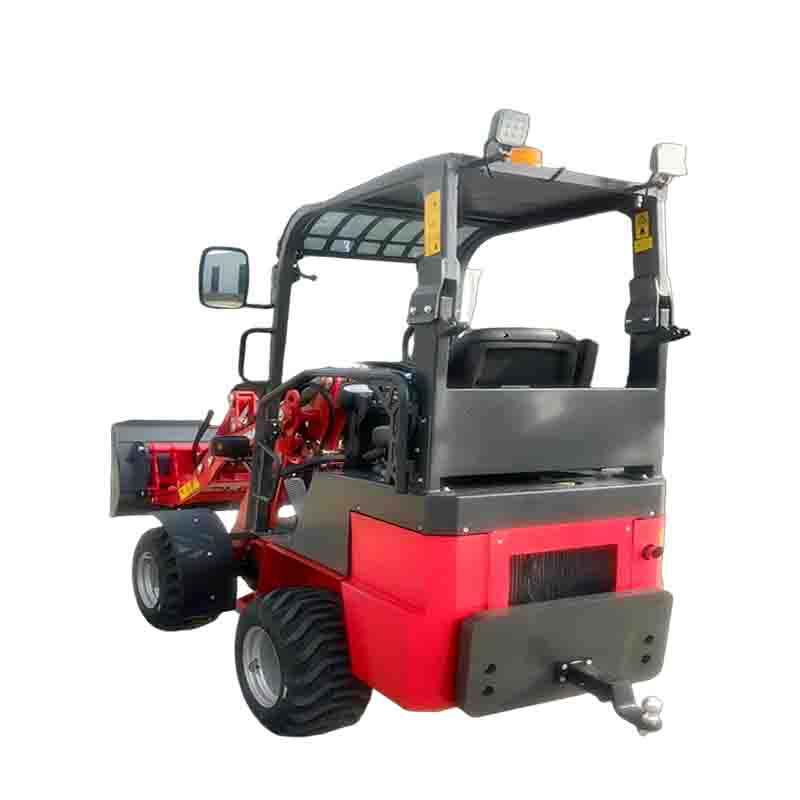

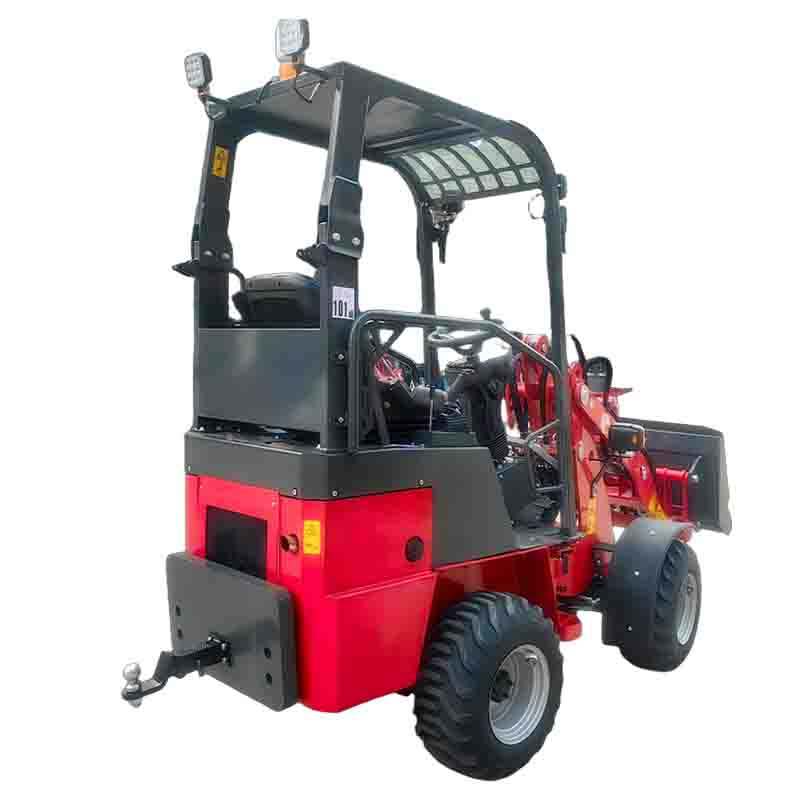

1140B---CE Certified Customizable Mini Compact Wheel Loader for Small Earthwork Projects

Product Description

A 1.72-ton agile material handler powered by Perkins 403 J-11 engine (18.4kW) with dual hydraulic systems (84L/min travel + 32L/min implement). Featuring 51° articulation angle and 12km/h speed, it excels in loading, grading, and confined-space operations.

Specification:3640*1300*2110mm

Application:Small construction sites, Small earthwork projects, Narrow space operations, Agriculture and animal husbandry

Certificates:CE Certified

Advantages:

All-Terrain Agility

12km/h Travel Speed: hydraulic drive enables rapid repositioning.

180mm Ground Clearance: Superior rough-terrain access vs. tracked equipment.

High-Efficiency Loading

1,100kg Max Lift Force: 3.1s boom lift speed (fastest in class) and 0.23m³ bucket.

Auto-Leveling Intelligence: Precise grading on uneven surfaces.

Multi-Scene Versatility

Dual Hydraulic Circuits: 84L/min travel and 32L/min implement flow for attachments.

2,640mm Lift Height: Effortless 3m truck loading.

Extended Endurance

26L Fuel and 40L Hydraulic Tanks: 50% longer operation than competitors.

Integrated Braking: Combined service/parking brakes reduce maintenance.

Industrial Reliability

Premium Drive train: Perkins 403 J-11engine , electric step-less transmission and 45.5-15 tires.

Safety Engineering: 52°max rollback and 35°dump angle for controlled operation.

Technical parameters

Introducing our high-performance Diesel Loader—engineered to be Powerful, Agile, and Safe—the ultimate solution tailored to elevate your operational efficiency and reliability. This robust machine stands out with its intuitive electric joystick, which seamlessly integrates forward/reverse control for effortless, one-hand operation that minimizes operator fatigue and streamlines workflow. It also comes equipped with versatile high-low speed settings, allowing you to effortlessly switch between high-speed mobility for quick site traversal and low-speed torque for heavy-duty lifting, digging, or loading tasks. Whether tackling construction sites, agricultural operations, or industrial yards, this diesel loader combines rugged durability with user-centric design, ensuring consistent performance, precise control, and top-tier safety features to keep both operators and worksites protected.

1. Q: What type of machine is this?

A: This is a brand new Mini Loader, designed for agricultural and light construction use. It is compact, versatile, and suitable for a wide range of tasks.

2. Q: What is the engine type and power?

A: It is equipped with a diesel engine, 17.1kw, offering reliable power and fuel efficiency for demanding operations.

3. Q: What are the key features of the control system?

A: The machine comes with an electric joystick for easy operation, including a forward/reverse button on the joystick for smooth directional changes.

4. Q: Can the color be customized?

A: Yes, we offer color customization based on customer requirements.

5. Q: How about after-sales service and warranty?

A: We provide a standard one year warranty and technical support. Spare parts are also available upon request.
