Mini Diesel Skid Steer Loader with Attachment Track Drive Crawler Moving Rated Load

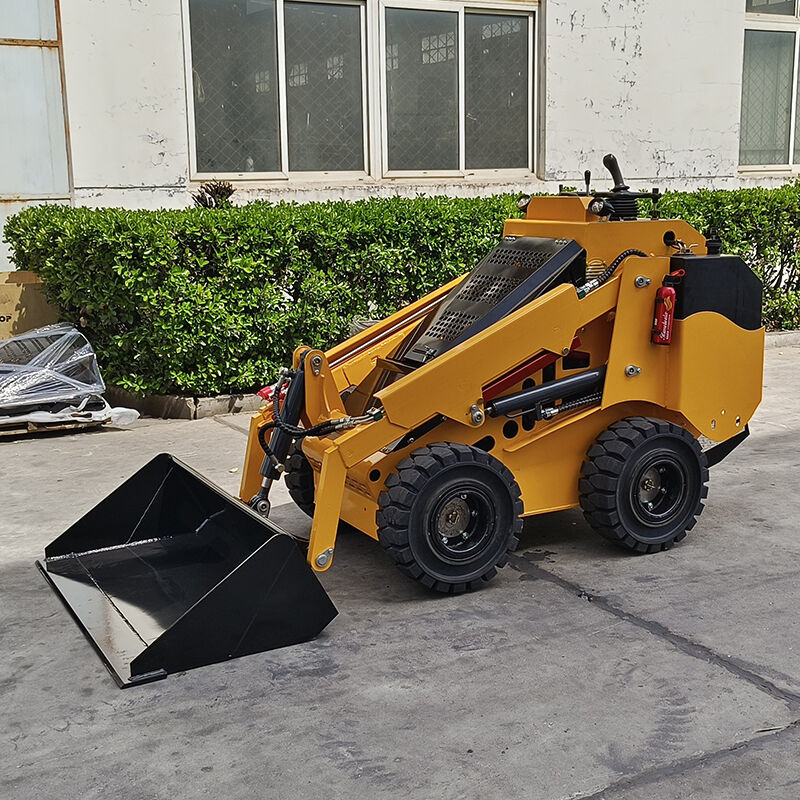

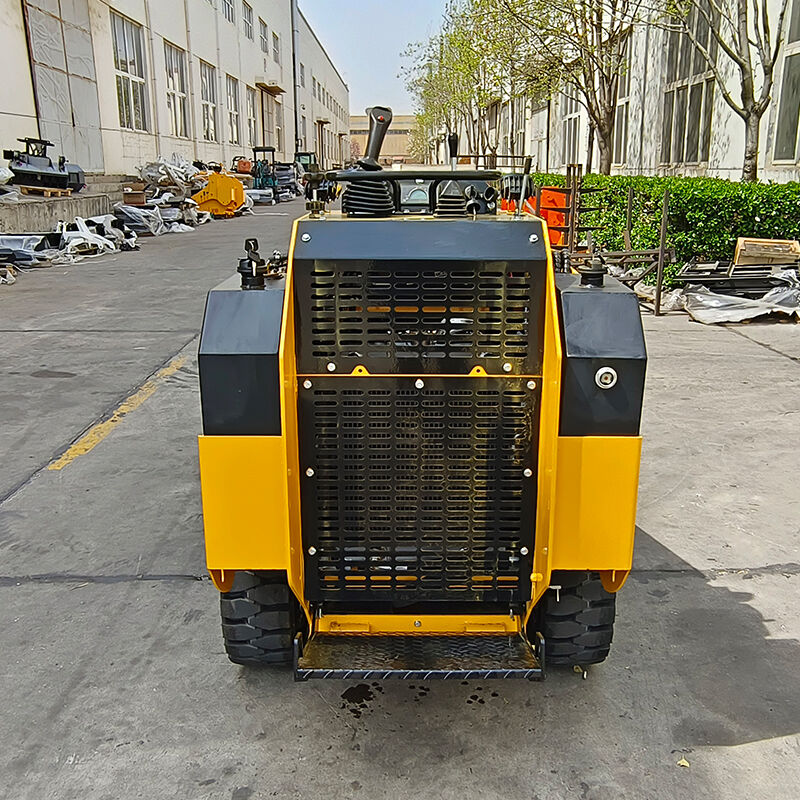

Mini Diesel Skid Steer Loader with Attachment
Description
Product Description
Designed for professionals, this excavator combines eco-friendliness with compactness. Engine options include Electric, Laidong 385, and Yanmar 380, with power ranging from 8kW (72V/20Ah) to 18.6kW, complying with EURO5/EPA standards. With a rated capacity of 400kg (max 450kg), 4.5kN breakout force, and 9-second cycle time, it excels in tight spaces. The 0.15m³ bucket features 22°/114° flip angles for flexible operation. Key specs: 2920mm max height, 1200mm dumping height; 1300mm track length, 240mm ground clearance, 500mm tail swing, 0-6km/h speed for maneuverability. Equipped with 25bar system pressure, 30L fuel tank, and 1400kg weight, backed by certifications and 1-year warranty for reliable earthmoving.
Technical parameters
Type |
Skid Steer Loader |
Emissions standards |
EURO5/EPA |
Air intake way |
Naturally Aspirated |
Machine Weight |
1400kg |
Specification |
2700*970*1550mm |
Bucket capacity |
0.15m³ |
Color |
Customers Requirements |
Engine Brand |
Electric /Laidong 385/Yanmar 380 |
Place of Origin |
Shanghai,China |
Warranty |
1 Year |
Power |
8kw、72v、20ah/18.6/18.4kw |
Rated Speed |
0-6km/h |
Length without Standard Bucket |
2070mm |
Bucket Width |
1270mm |
Tail Length |
500mm |
Height at Maximum Extension |
2920mm |
Machinery Test Report |
Provided |
Video outgoing-inspection |
Provided |
Service |
1-YearWarranty |
